Plastic slats [see all plastic slatsalle Kunststoffroste öffnen]

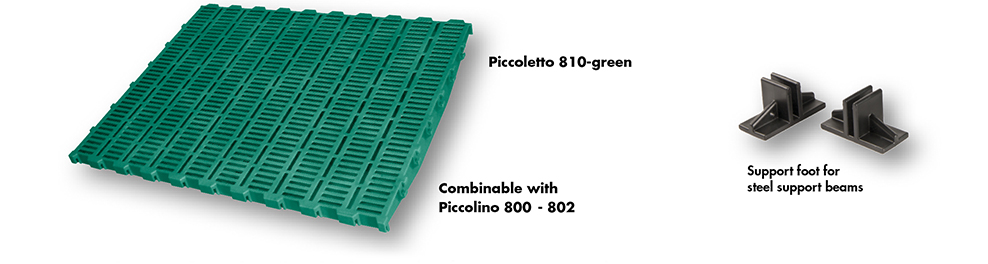

Piccoletto - weaner plastic slat for flatdecks (up to 35 kg) [see Piccoletto - slatsRoste öffnen]

Weaner - plastic slats for flatdecks made of PPC - Polypropylen

Piccoletto -
weaner slats		 sizes mm
width x length		 gap
width		 bar
width		 support
high		 weight/
piece		 for weaners
Piccoletto 810 - green 800 x 1000 10 mm 10 mm 12 mm 5,75 kg up to 35 kg
End piece - - - 12 mm 0,010 kg / pc  -
Support foot Support foot for 5 mm steel support beams 0,016 kg / pc  -

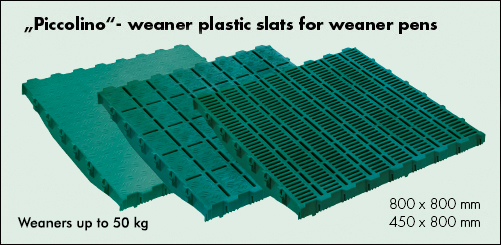

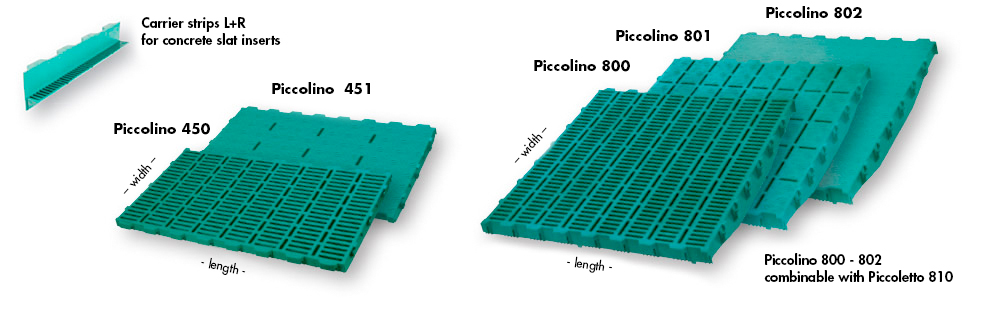

Piccolino - weaner plastic slats for flatdecks and grower pens (up to 50 kg)[see Piccolino - slatsRoste öffnen]

Weaner - plastic slats for flatdecks and grower pens made of PPC - Polypropylen

Piccolino -
weaner slats		 sizes mm
width x length		 gap
width		 bar
width		 support
high		 weight/
piece / pair		 for weaners
Piccolino 450 450 x 800 10 mm 10 mm 12 mm 2,70 kg / pc  up to 50 kg
Piccolino 451 450 x 800 closed surface with 2% openings 12 mm 3,00 kg / pc 
Piccolino 800 800 x 800 10 mm 10 mm 12 mm 5,55 kg / pc 
Piccolino 801 800 x 800 closed surface with 10% openings 12 mm 5,75 kg / pc 
Piccolino 802 800 x 800 closed surface 12 mm 5,85 kg / pc 

Carrier L+R 400 mm length Carrier strips (left+right) for concrete slat inserts 0,400 kg / pair -
End piece - - - 12 mm 0,010 kg / pc  -
Support foot Support foot for 5 mm steel support beams 0,016 kg / pc  -

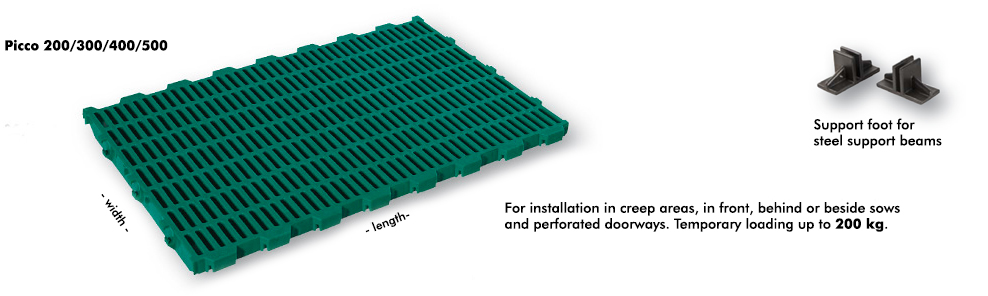

Picco - farrowing plastic slats for straight farrowing pens and perforated doorways (up to 200 kg)[see Picco - slatsRoste öffnen]

Farrowing - plastic slats for straight farrowing pens and perforated doorways made of PPC - Polypropylen

Picco -
farrowing slats		 sizes mm
width x length		 gap
width		 bar
width		 support
high		 weight/
piece		 for type
of pens
Picco 200 200 x 400 10 mm 10 mm 12 mm 0,54 kg straight
farrowing pens
(in piglets areas)

and
perforated doorways
Picco 300 300 x 400 10 mm 10 mm 12 mm 0,90 kg
Picco 400 400 x 800 10 mm 10 mm 12 mm 2,55 kg
Picco 500 500 x 800 10 mm 10 mm 12 mm 3,80 kg
End piece - - - 12 mm 0,010 kg
Support foot Support foot for 5 mm steel support beams 0,016 kg

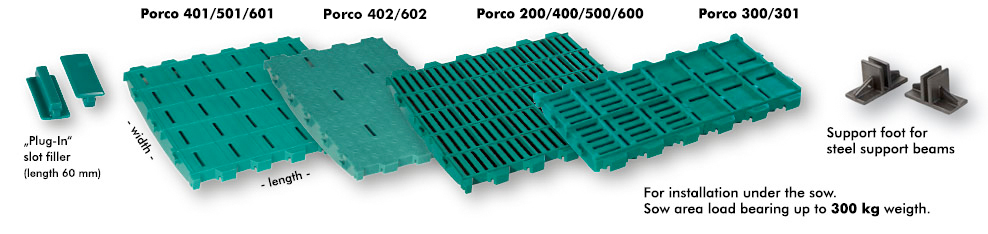

Porco - sow plastic slats for straight and diagonal farrowing pens (up to 300 kg) [see Porco - slatsRoste öffnen]

Sow - plastic slats for straight and diagonal farrowing pens made of PPC - Polypropylen

Porco -
sow slats		 sizes mm
width x length		 gap
width		 bar
width		 support
high		 weight/
piece		 for type
of pens
Porco 200 200 x 400 10 mm 15 mm 12 mm 0,75 kg farrowing
pens
Porco 300 300 x 300 10 mm 15 mm 12 mm 0,96 kg
Porco 301 300 x 300 closed surface with 10% openings 12 mm 0,97 kg
Porco 400 400 x 600 10 mm 15 mm 12 mm 2,45 kg
Porco 401 400 x 600 closed surface with 6% openings 12 mm 2,55 kg
Porco 402 400 x 600 closed surface with drainage 12 mm 2,52 kg piglets resting areas
Porco 500 500 x 600 10 mm 15 mm 12 mm 3,35 kg farrowing
pens
Porco 501 500 x 600 closed surface with 6% openings 12 mm 3,55 kg
Porco 600 600 x 400 10 mm 15 mm 12 mm 2,62 kg
Porco 601 600 x 400 closed surface with 6% openings 12 mm 2,82 kg
Porco 602 600 x 400 closed surface with drainage 12 mm 2,82 kg piglets resting areas

Plug-In Slot filler for Porco 401/402,  Porco 501,  Porco 601/602 0,010 kg -
End piece - - - 12 mm 0,010 kg -
Support foot Support foot for 5 mm steel support beams 0,016 kg -

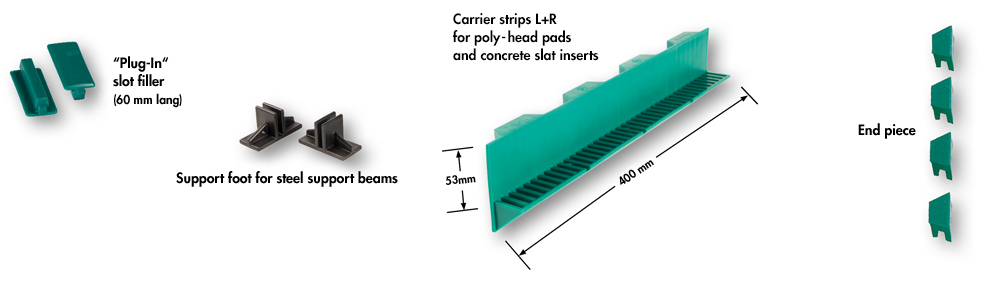

Accessories for plastic slats, poly head pads and concrete slat inserts [see AccessoriesZubehör öffnen]

Accessories sizes mm
width x length		 gap
width		 bar
width		 support
high		 weight/
piece
Plug-In Slot filler for Porco 401/402,  Porco 501,  Porco 601/602 0,010 kg
Support foot Support foot for 5 mm steel support beams 0,016 kg
Carrier L+R 400 mm length Carrier strips (left+right) for poly-heat pads and concrete slat inserts 0,400 kg / pair
End piece - - - 12 mm 0,010 kg / pc 

Cast iron slats [see all cast iron slatsalle Gussroste öffnen]

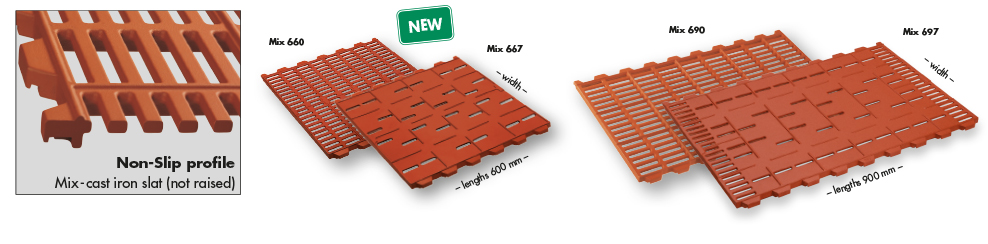

Mix - cast iron slats for farrowing pens [see Mix - slatsRoste öffnen]

Mix - cast iron slats made of FERRO - cast iron for farrowing pens

Mix -
cast iron slats		 sizes mm
width x length		 gap
width		 bar
width		 support
high		 floor
level		 weight/
piece		 for type
of pens
Mix 660 600 x 600 10 mm 15 mm 12 mm even 18,5 kg Farrowing pens
Mix 667 600 x 600 closed surface with 5% openings 12 mm even 21,5 kg

Mix 690 600 x 900 10 mm 15 mm 12 mm even 28,0 kg Farrowing pens
Mix 697 600 x 900 closed surface with 7% openings 12 mm even 30,0 kg

Heat pads [see all heat pads alle Ferkelheizungen öffnen]

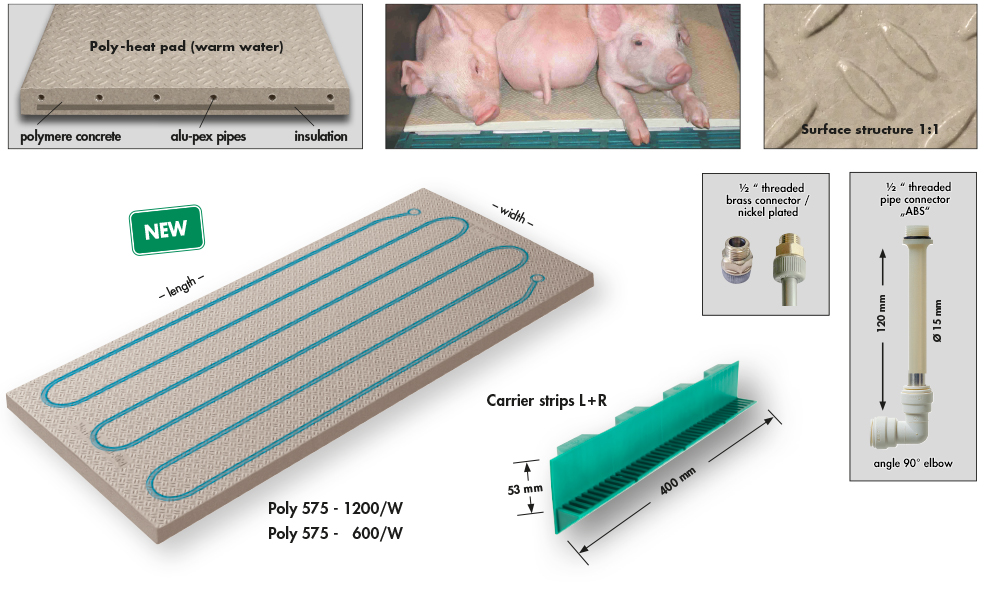

Poly - heat pads for farrowing pens (up to 35 kg) [see Poly - heat padsPoly - Heizungen öffnen]

Poly - heat pads made of Polymere-concrete

Poly -
heat pads		 sizes mm
width x length		 heat
source		 power
pad / hour		 supp. direction
to the pad		 weight/
piece		 for type
of pens
Poly 400/W 400 x 1200 warm water 150 W / 75 W lengthways 24,0 kg farrowing pens
Poly 450/W 450 x 1350 warm water 180 W / 90 W length- & crossways 37,0 kg flatdecks
Poly 600/W 600 x 1200 warm water 220 W / 110 W length- & crossways 41,0 kg farrowing pens
Poly - Clip assembly piece - - - 0,02 kg Poly - heat pads

Poly 575-1200/W 575 x 1200 warm water 220 W / 110 W lengthways 76,0 kg farrowing pens
Poly 575-600/W 575 x 600 warm water 120 W / 60 W length- & crossways 38,0 kg farrowing pens
Carrier L+R - Carrier strips 400 mm long x 53 mm high 0,400 kg / pair Poly - heat pads

Up to eight warm water heat pads can be connected in series to the same water circuit. The connection and start-up of our heat pads are to be performed by qualified and experienced installer.

Product overview as PDF for printing
